WALLS EXPERT
Design of core walls of any shape according to ACI318-25 metric
Purchases use the existing secure STRES checkout.
Innovative application for analysis of core walls of any shape according to ACI318-25

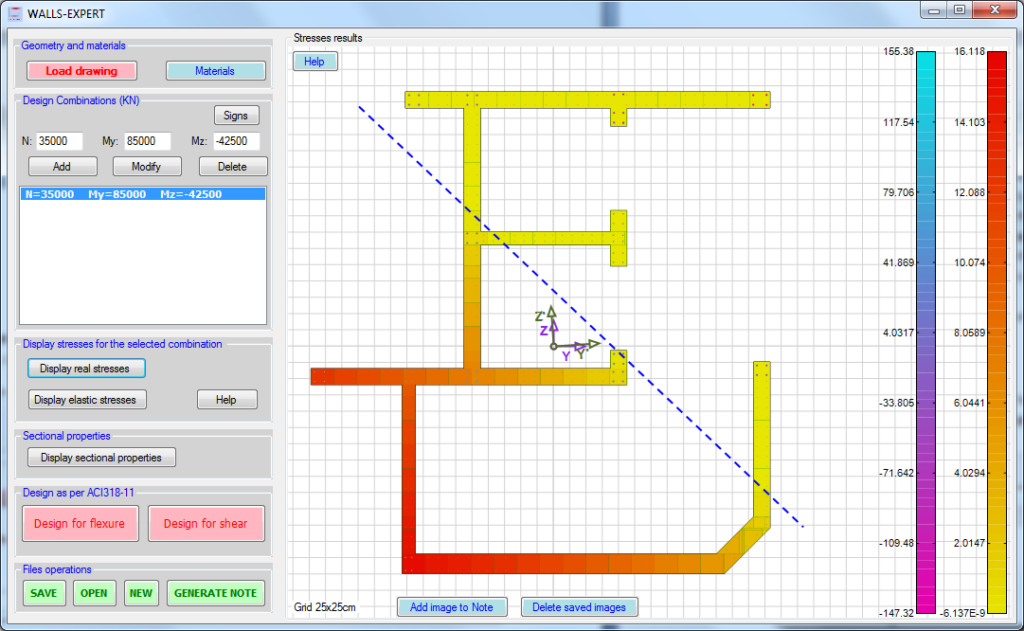

Graphical display through colored maps of the stresses in concrete and reinforcement, allowing the user to fully investigate the design and optimize reinforcement:

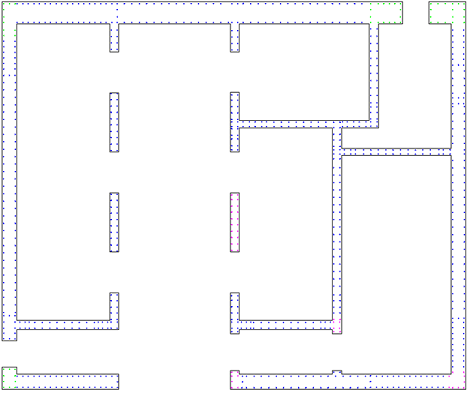

Direct import from AutoCAD of the geometry and reinforcement of the core: It is the most efficient and the quickest way to model cores of any complexity:

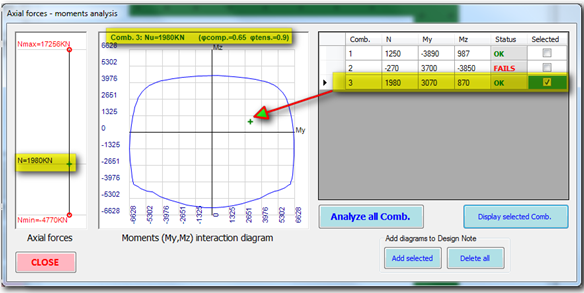

Generation of interaction diagrams to check the nominal capacity of the core regarding axial forces- biaxial bending:
Original technical image (unavailable on the source website)

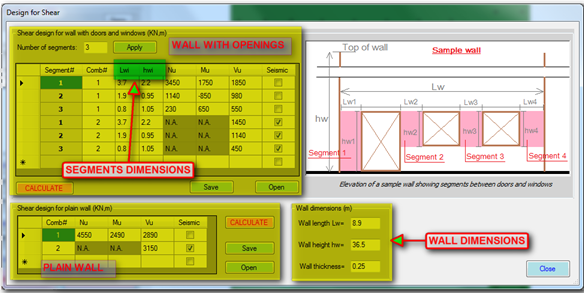

Shear design considering doors and windows of all walls pertaining to the core:
Original technical image (unavailable on the source website)

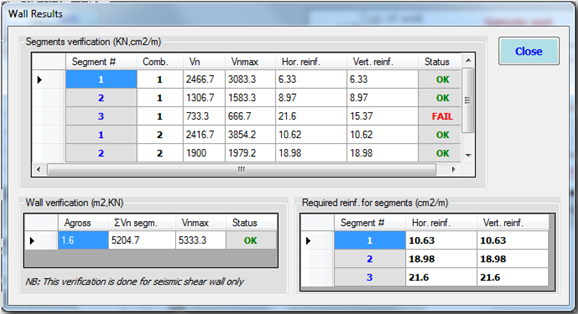

Calculation of horizontal and vertical reinforcement required for shear under seismic and non-seismic combinations:
Generation of high-quality design notes where results are displayed by the mean of graphics and tables.
WALLS-EXPERT combines simplicity with state-of-the-art technologies to help you solving your most complicated problems within minutes.
Notes:
- The Demo version comes with limitations regarding materials characteristics.
- The license allows the user to install the software on one machine only.
